KSB AmaDrainer R 511 ND/10K drainage pump - 400 V
KSB AmaDrainer R 511 ND/10K, 400 V, without float switch. For oily water/emulsions; 10 mm free passage. 10 m cable. Check fluid compatibility.
KSB AmaDrainer R 511 ND/10K: drainage of water containing oil and emulsions
Submersible R variant for draining water containing oil or emulsions compatible with the pump materials. Selection depends on the fluid, flow rate and installation head.
Model specifications
- KSB reference: 29128730
- Power supply: 400 V, 50 Hz
- Rated output P2: 1,1 kW
- Free passage: 10 mm
- Discharge: G 2
- Cable: 10 m
- Float switch: not included
- Cooling jacket: yes
Frequently asked questions
What is the R variant used for?
Water containing oil, emulsions and cutting oils, subject to the manufacturer's material compatibility requirements. This does not itself authorise use with flammable liquids or in explosive atmospheres.
Does this model include automatic float control?
No. This variant does not include a float switch; control must be selected for the installation.
How can I confirm the selection?
Read the technical data and contact Syst-MP in Loulé for selection support for your installation in the Algarve or Alentejo. Availability and delivery time must be confirmed.

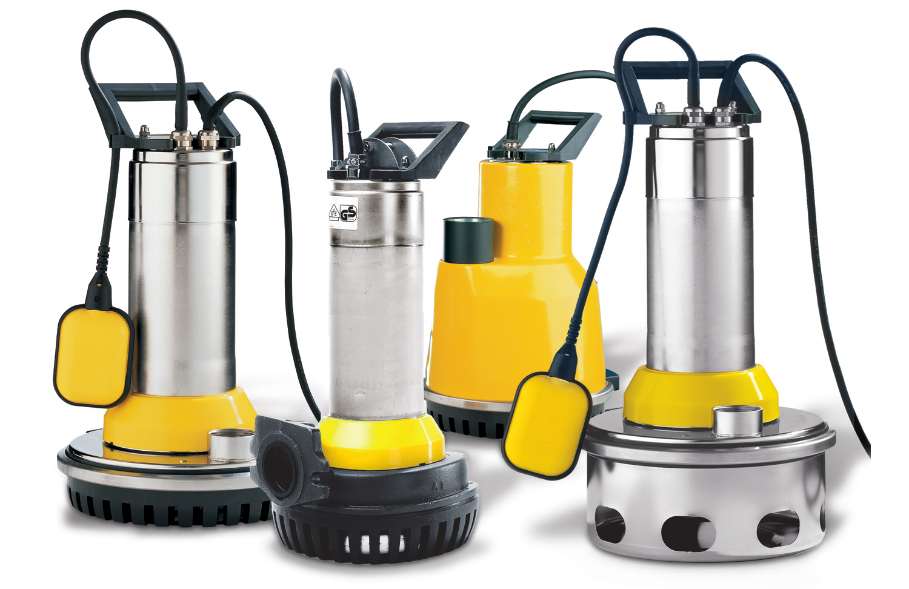

Illustrative image of the AmaDrainer range; the supplied equipment corresponds to the stated reference.
